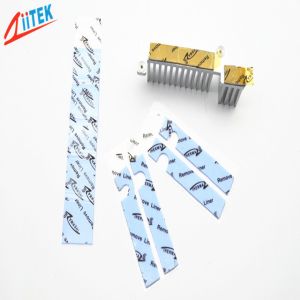

UL recognized 3.2 W/mK thermal conductive gap pad for heat pipe thermal solutions
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
<Moldability for complex parts
<RoHS compliant
<UL recognized
<High durability
<Heat pipe thermal solutions
<Memory Modules
<RDRAM memory modules
<Micro heat pipe thermal solutions
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
| Typical Properties of TIF 560S | |||
| Product Name | TIF560S Series | ||
| Colour | Blue | ||
| Construction & Compostion | Ceramic filled silicone rubber | ||
| Specific Gravity | 3.0g/cc | ||
| Thickness | 1.5mmT | ||
| Hardness | 45 Shore 00 | ||
| Tensile Strength | 40 psi | ||
| Continuos Use Temp | -40to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 3.2 W/mK | ||
| Thickness | 0.50mm to 5.0mmT | ||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
